DermaScan C

Our scanners feature realtime scanning, high resolution and software for advanced skin ultrasound imaging analysis. All DermaScan C configurations are built to provide optimal reliability and meet the latest international standards and safety requirements.

DermaScan C
Decades of scientific use
For decades the DermaScan has been used in a broad range of research studies, clinical applications as well as Product R&D. It has been developed for the specific purpose of providing high resolution ultrasound images of the skin and underlying soft tissue.
For general purpose skin scanning we recommend a 20 MHz transducer providing a 60 by 150 micron resolution and in-depth penetration of 14 mm or 60 by 200 micron resolution and 23 mm penetration. For ultimate resolution and image definition a 50 MHz broadband option provides a 30 by 60 micron resolution and 7,1 mm max penetration.

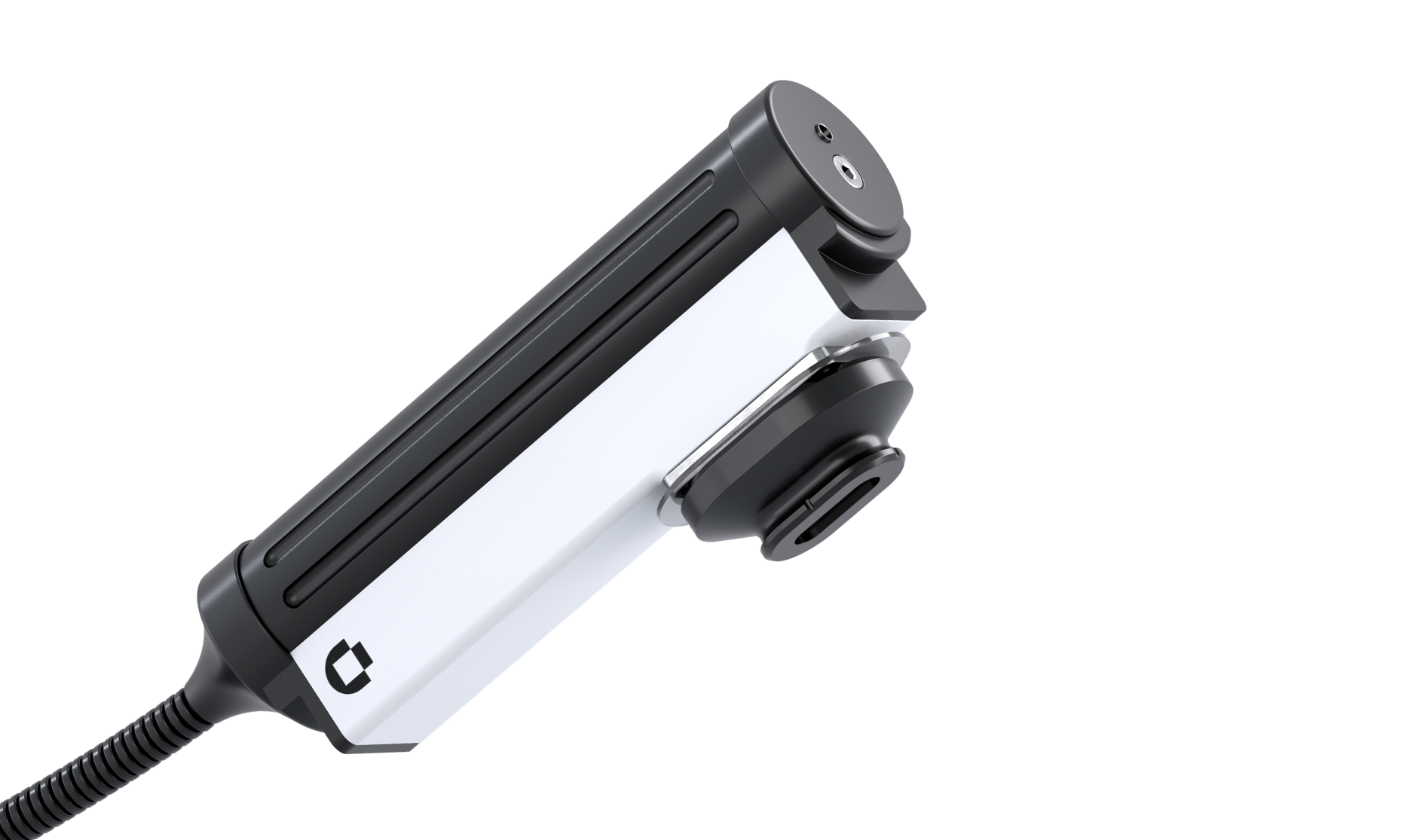

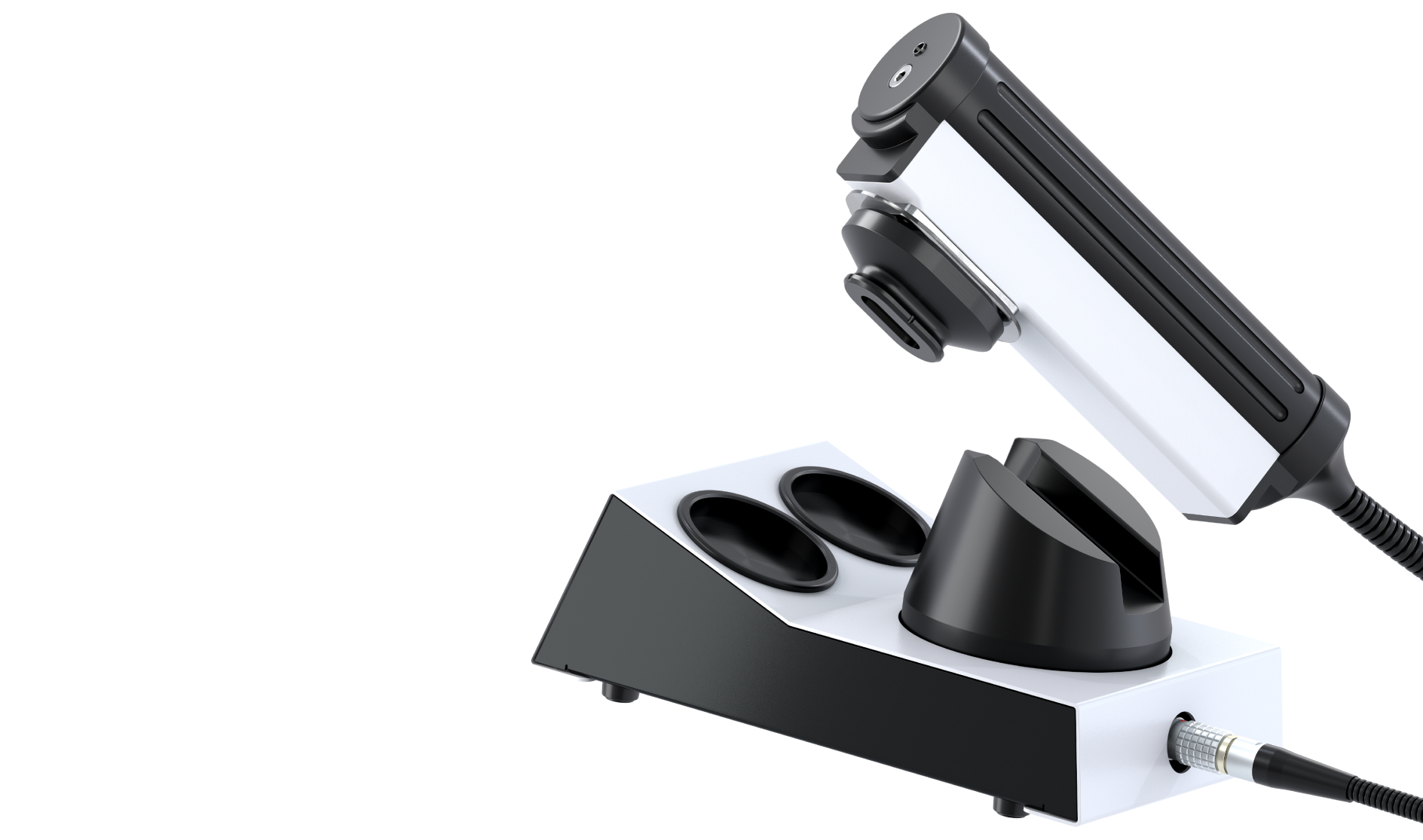

All ultrasound probes offer linear scanning. Each individual transducer is carefully matched to the actual probe to ensure high precision operation and true position detection for unmatched image clarity and definition.
Features
  • RectangleCreated with Sketch. Real-time scan
6 – 8 frames per second
  • RectangleCreated with Sketch. Automatic cineloop
Recording of 100 images
dermascan-ultrasound-of-nevus

Skin ultrasound

​​DermaScan C application software showing a highlighted dermal nevus with calculations.
high-resolution-ultrasound

High resolution images

​20 MHz scan demonstrating less pixelisation due to 12 bit A/D conversion.
ultrasound-of-palm-sweat-ducts

50 MHz ultrasound of palm

Note the surface ridges and cross-sectional visualisation of the spiralised sweat ducts.
Technical specifications
Real-time scanning at 6-8 frames per second
A/B-mode scanning
Selection of broadband transducers from 20 – 50 MHz
Swept gain adjustment of both level and profile
Autosave function

Resolution:

60 by 150 micron @ 20MHz, 14 mm max. penetration

60 by 200 micron @ 20MHz, 23 mm max. penetration

30 by 60 micron @ 50MHz, 3 mm max. penetration

Zoom and scroll feature
Automatic cineloop recording of 100 images
Tiff and jpg format conversion
Storage of individual images as well as complete cineloop
Probes with closed water chamber
Windows based user interface
Advanced measurement functions including ROI, edge detection and intensity segmentation
Safety
Complies with international safety regulations and quality standards incl. EU and FDA requirements
Misc.
Extended upgrade and warranty program available
Power requirements
Line voltage 100-240 VAC, 50/60 HZ
Power consump. max. 120 W
Environment
Operating temp. 10-40 °C
Humidity 10-90% RH non-condensing
