Be the expert with accurate skin color measurement

Gain more clients by demonstrating your expert knowledge with valid data. Deliver accurate and detailed color measurements with the Colorimeter DSM-4 - your most professionel quality tool for skin color assesment.

4 simultaneous skin color measurements with 1 instrument

The Colorimeter DSM-4 is based on the newest technology and provides you with accurate skin optimised measurements for percieved color, ITA, pigmentation, and erythema simultaneously and at the same location.

The colorimeter is able to detect extremely small color changes in the skin, and it is ideal for evaluation of skin eg. before and after laser treatments. The colorimeter is highly recognized in both research studies and in pharmaceutical and cosmetic efficacy testing. Now it is available in a highly updated version - the DSM-4 model.

<1<1

second to dertermine skin color and phototype

<1<1

color difference (ΔE₀₀)

The Colorimeter DSM-4 is equipped with advanced software with automatic classification of skin phototype (ITA) in 6 groups: very light, light, intermediate, tan, brown, and dark.

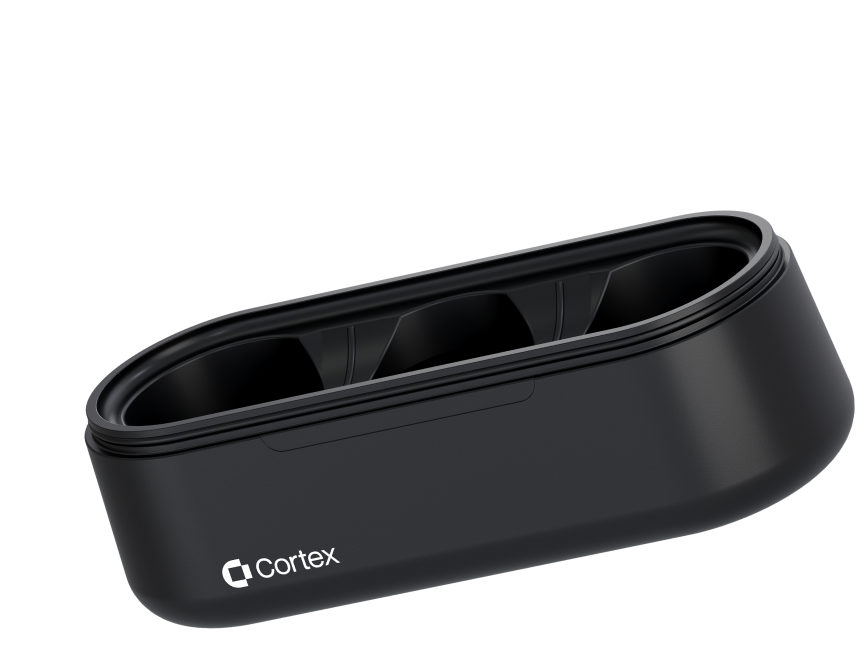

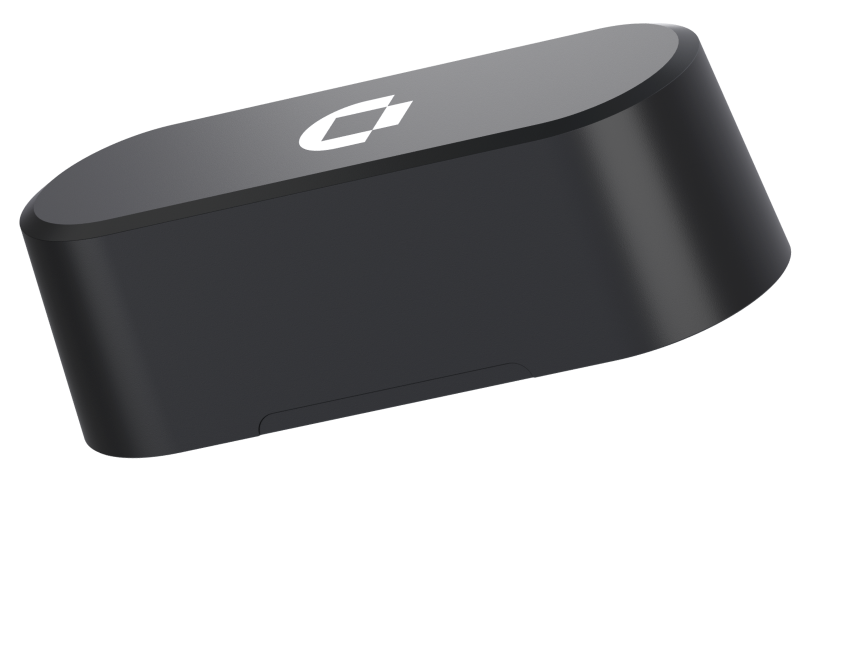

High quality working standards (white, zero, and gloss) ensure reliable skin color measurements over time. It has an intuitive and portable calibrator, which is built into the storage case.

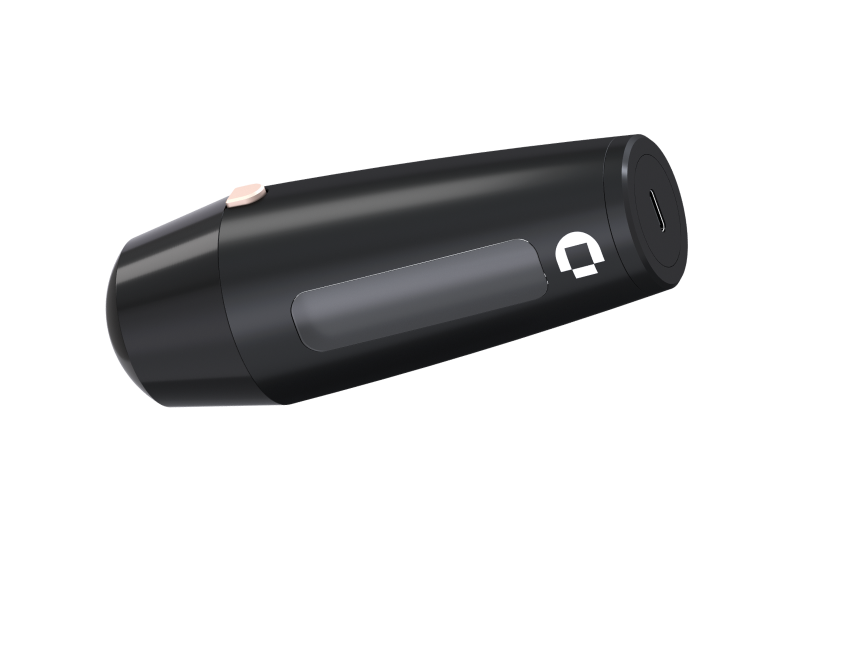

The modern portable design of the Colorimeter DSM-4 and the integrated calibrator is perfect for working remote. The Colorimeter DSM-4 is delivered with software for Windows on USB flashdrive.

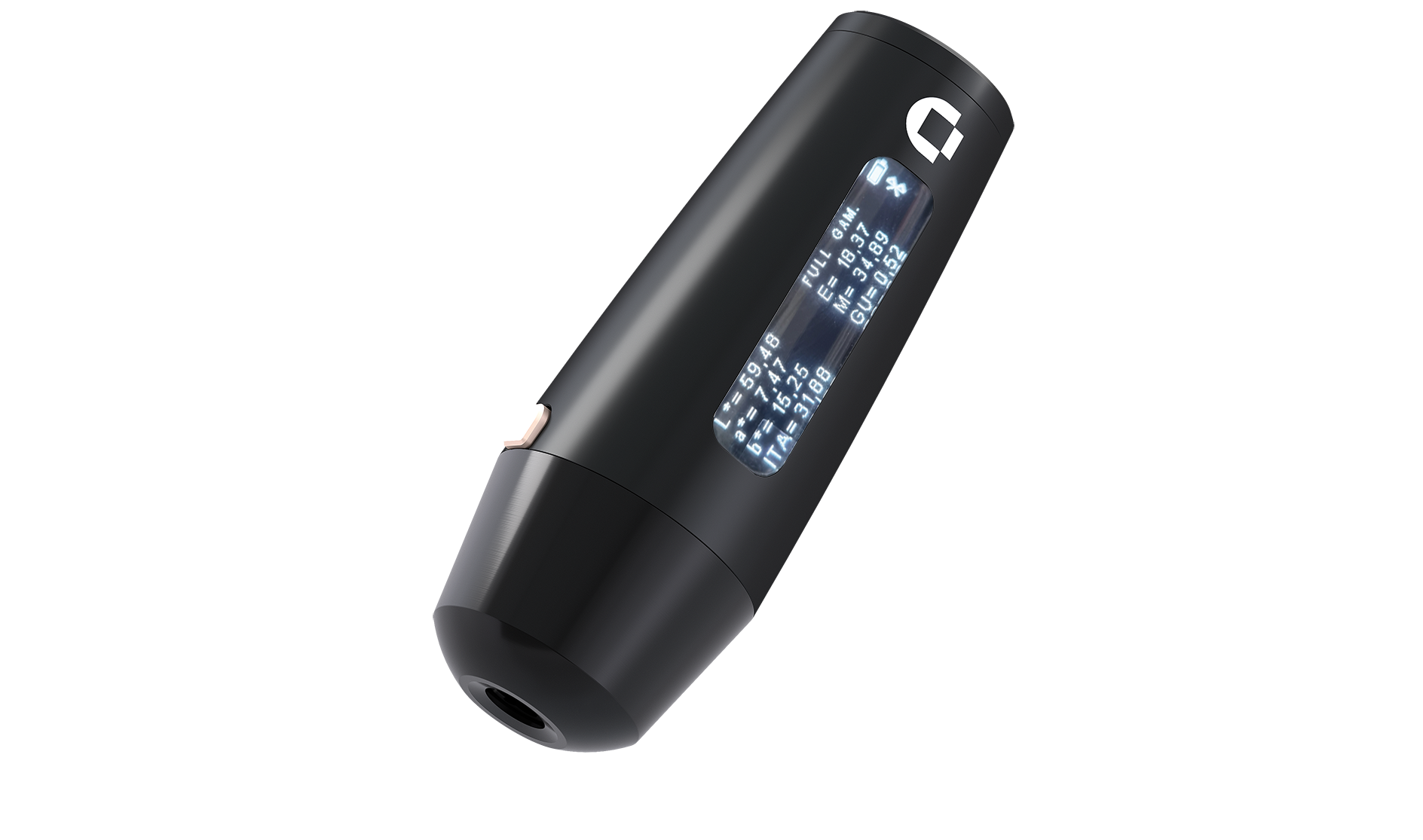

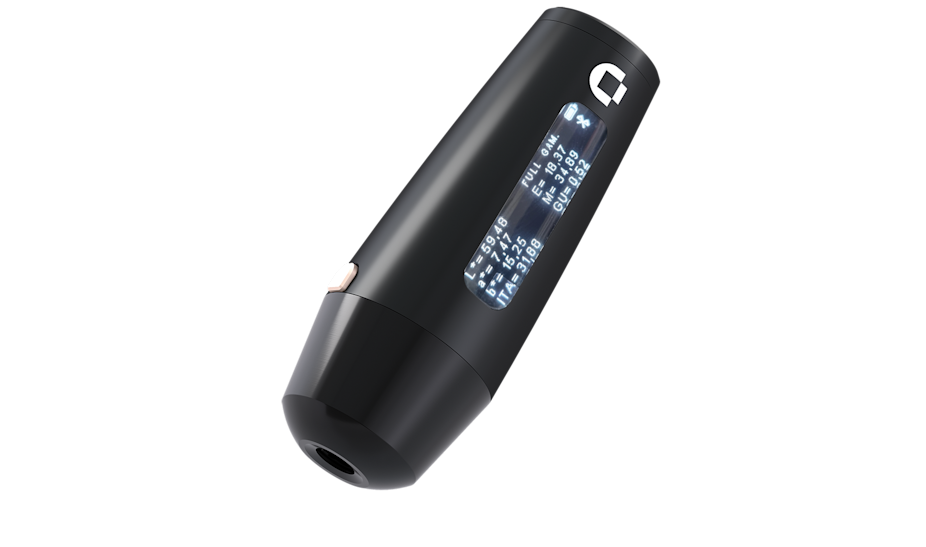

DSM Probe Hi-res 1 - uden glas med display

Proven accuracy

“The Colorimeter DSM-4 has proven to be an effective tool for accurately measuring skin pigmentation. We have verified this through a recent comparative study, where the DSM-4 demonstrated its excellent accuracy.”

The DSM-4's optimized design for skin color measurements ensures accurate ITA values, making it particularly useful to distinguish between individuals that differ in their degree of pigmentation.

Additionally, it allows for reliable estimation of differences in sun exposure by comparing constitutive and facultative pigmentation. This makes the DSM-4 a valuable instrument for both clinical and research settings.”

Dr. Gary Grove

Cyberderm
USA

Specifications

45°/0° Colorimeter with full visible spectrum color sensor

Principle: 4 x 16 color sensor elements

Light source: 4 x D65 LED illuminants with CRI > 98

Color space: CIE XYZ, L*a*b*, L*C*h, sRGB

Color difference: ΔEab <2 and ΔE00 <1

60° specular gloss (GU) measurement

Measurement aperture: 8 mm

Measurement area: 50 mm2

Pigmentation (melanin): 0.0 – 99.9

Erythema (redness, hemoglobin): 0.0 – 99.9

Photo type classification: Individual Typology Angle (ITA)

Wireless data transfer

Special correction matrix optimised for skin

Portable calibrator

Software for Windows 10+11

Warranty: 1 year. Extended upgrade and warranty program available.

Download brochure

The software

Colorimeter software

You can customise your settings to get a more detailed view of your samples, and export your data with just one click.

DSM-4 receives outstanding reviews!

Read testimonials from our users below to gain valuable insights into the DSM-4’s features and applications.

DSM-4 delivers crucial melanin measurements

“We have purchased four Colorimeter DSM devices for various research projects in our university lab. One of our recent publications uses the DSM for melanin measurement, and we are very pleased with the device.

We are currently using it in Rwanda and Ghana, in addition to our work in the US. Since our research focuses on developing equitable medical optical devices, understanding and quantifying skin properties scientifically is crucial, and the DSM devices have been instrumental in meeting our needs.”

Shidhartho Roy

PhD Student, Biomedical Engineering
Carnegie Mellon University

Meets FDA's requirements for standardized assessment

“The Colorimeter DSM-4 significantly advances the standardization of skin pigmentation measurement. This is crucial as the FDA emphasizes accuracy, reproducibility, and scientific validation in skin color assessment and SPF testing.

Unlike the subjective Fitzpatrick Phototype classification, which has been criticized for its variability and lack of consensus, the DSM-4 provides an objective instantaneous measurement of skin pigmentation using the Individual Typology Angle - ITA.

This aligns with updated standards (like ISO 24444:2010), and therefore makes the DSM-4 an excellent choice for accurate pigmentation assessment.”

Dr. Gary Grove, Cyberderm, USA

Quick, portable and easy to use

"Our primary purpose for using the DSM-4 was for clinical research; we wanted an unbiased measurement of skin color alongside patients’ self-reported Fitzpatrick scores.

We chose the DSM-4 because it was positively reviewed in a comparative study assessing multiple clinical research colorimeters. I was looking to collect data about melanin index and CIELAB values, and the fact that this device measures both was very helpful. The size and price of the device was appealing compared to other options.

The size and portability of the colorimeter was very helpful for clinical use. I appreciated that the colorimeter was quick and easy to use; it was something I could demonstrate on myself to show patients how it worked as part of their consent to participate in research. The wireless design and long battery life was also essential for our purposes.

I would definitely recommend this one for everyday use in a similar setting. It has worked very well for us for over a year, and it still functions just like new."

Sophie Addi

Senior Lab Researcher
National Jewish Health, Denver
